Excavation in Downtown Calgary & the Beltline

Downtown Calgary and the Beltline give an excavation the least room and the most underneath it: buildings on the property line, streets packed with water, sewer, power and telecom lines, and the Bow River along the edge of the core. We daylight lines, trench services, break out slabs and repair utilities here, planned around the City right-of-way, the buildings next door and traffic that does not stop for a dig.

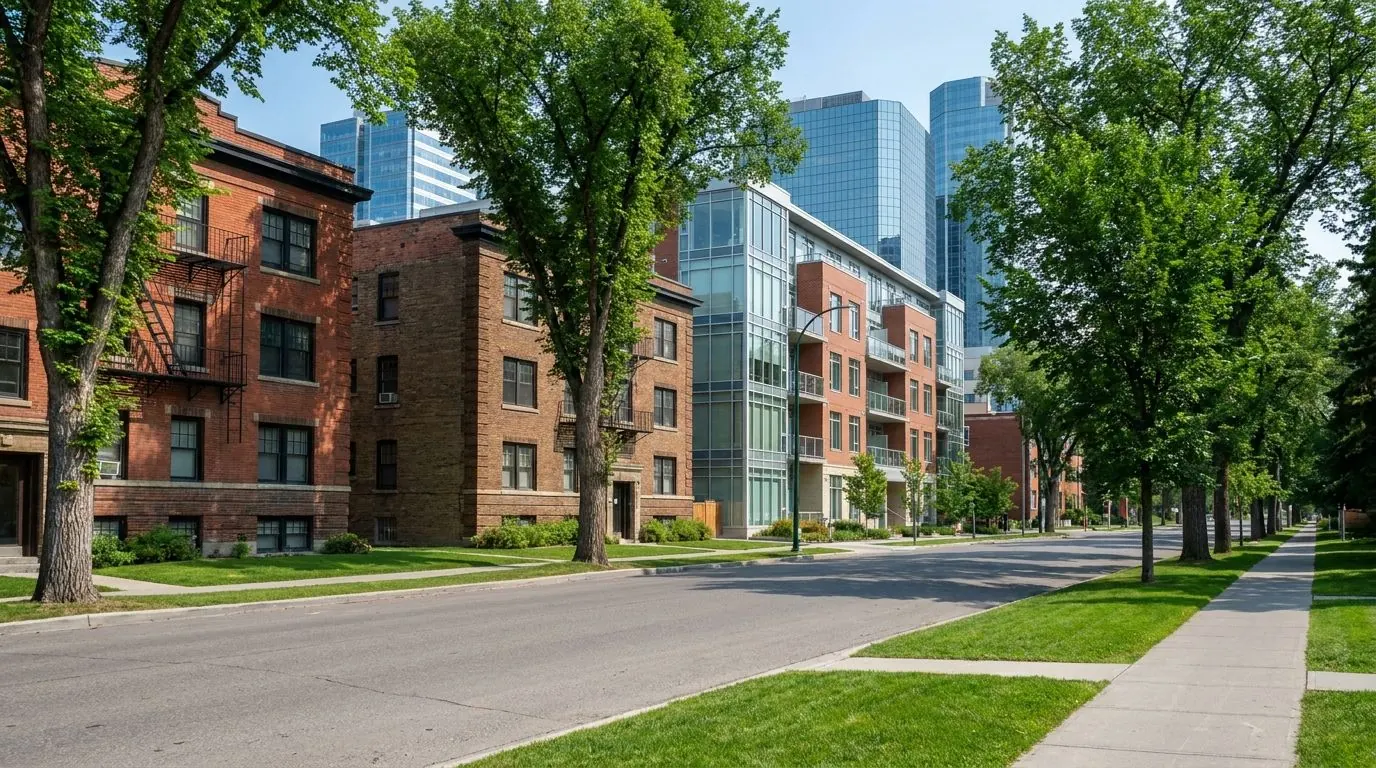

A tree-lined inner-city street of older brick walk-ups and newer mid-rise buildings, with downtown office towers rising behind on a clear day.

At a Glance

Municipality: City of Calgary
From our downtown office: Our office is here
Typical servicing: City water, sanitary and storm mains
Postal prefixes: T2P, T2R, T2G

(825) 475-5548

Lots, Homes and Sites in Downtown Calgary & Beltline

The City classes six communities here as Centre City: the Downtown Commercial Core, the Beltline, Eau Claire, Downtown West End, Downtown East Village and Chinatown. They are built out lot line to lot line. High-rise and mid-rise buildings leave no side yard, no staging area and often no spot to park a truck off the street. A service repair, a new electrical feed or the removal of a failed slab happens in a strip of ground with a foundation wall on one side and a live street on the other, so spoil leaves the site as it is dug instead of being piled beside the hole.

Most of what we dig downtown is under or beside a street. Lines and vaults run at many depths under City pavement, and records rarely match the ground exactly. The usual first tool is a hydrovac truck: pressurized water loosens the soil and a vacuum lifts it into a sealed tank, so a line inside the hand-expose zone can be uncovered without a bucket tooth near it. The slurry is classed as waste under provincial rules and goes to an authorized facility. Where a mechanical dig follows, a compact excavator with zero tail swing works inside the traffic control without swinging its counterweight into the open lane.

A few City of Calgary rules apply to residential lots in every quadrant, not just the centre city. A City demolition permit is not required in most cases to remove a detached residential garage, although an interior residential demolition needs a residential improvement building permit instead. On 8 April 2026 Council approved repealing the citywide "blanket" rezoning that took effect in August 2024, and the change took effect on 4 August 2026: parcels revert to their pre-2024 zoning, apart from listed exemptions, and the low-density districts return. Anyone planning an infill should confirm the lot's current district before excavation drawings are finalized.

Ground, Water and Frost

Four of the six communities here front the Bow River: Eau Claire, Downtown West End, Downtown East Village and Chinatown. The June 2013 flood was the largest in Calgary since 1897. The City recorded evacuations in 26 communities and emergency response across 32, with damage from overland flooding, rising groundwater, storm water back-up and sewer back-up, and it notes that the downtown was inaccessible for days. The City's maps put about 40% of Downtown East Village in the regulatory flood fringe and about 30% of Eau Claire in the floodway, and roughly a third of the Beltline lay inside the mapped 2013 flood extent, against about 1% of the Commercial Core. For a dig near the river, that means reading the flood mapping for the parcel before depth is set, and expecting water to reach an open excavation from below as well as from the surface.

The Beltline shows that flood water does not need to come over a riverbank. A temporary barrier helped protect Mission and the Beltline in 2013, yet the City records that some properties were impacted by stormwater and groundwater seepage. We do not quote groundwater depths for any downtown site, and nobody should without a geotechnical report for that lot. What we do is plan for water: pumps on site before the ground is opened, a discharge plan agreed before digging, and a trench closed as quickly as backfill and compaction allow so the street and sidewalk go back to the public.

Neighbourhood Notes

Downtown Commercial Core

Office towers and the street grid between them. Work here is almost all under City pavement: service repairs, conduit and vault access, and daylighting ahead of other trades. Addresses run about 91% SW and 9% SE, so the quadrant on a permit or locate request is worth checking.

Beltline

A dense residential community beside the core, with addresses split roughly 77% SW and 23% SE. Its 2013 record of stormwater and groundwater seepage makes foundation drainage and sump discharge worth checking before any basement-level excavation.

Eau Claire

On the Bow River at the edge of downtown, with about 30% of the community mapped as regulatory floodway. Before digging here we check where the parcel falls on that map, and we set up dewatering at the start of the job rather than after water shows up in the hole.

Downtown West End

The western end of the core, also on the river. Parcels are tight, so utility and slab work is sequenced around building entrances, loading and whatever lane or sidewalk use the City permit allows.

Downtown East Village

The one community in this group that addresses to SE. It fronts the Bow at the east end of the core, so a service tie-in or street restoration here gets the same flood-map check as Eau Claire, with an SE address on the locate request.

Chinatown

Addresses split about 61% SE and 39% SW, and the community fronts the river, with about a sixth of its area in the regulatory floodway. Where sidewalks and storefronts leave no room to stage, hydrovac exposure and hand digging are the careful default before any machine work.

Permits and Locates in Downtown Calgary & Beltline

Authority having jurisdiction: City of Calgary

Breaking or digging into a City of Calgary road right-of-way, whether street, lane or sidewalk, needs an Excavation Permit under Streets Bylaw 20M88. The City takes applications online up to two weeks in advance and says processing can take up to two business days, or up to ten where the pavement was laid within the past two years; shallow utility work also needs a Utility Line Assignment number. Water, sanitary and storm service connections inside the right-of-way must be installed by a utility indemnified contractor, and the owner is responsible for the service from the property line to the building's plumbing. Locate marks show where a line runs, not how deep it is, which is why we expose lines before any machine digs near them.

The Excavation Work Downtown Calgary & Beltline Calls For Most

Hydrovac & Non-Destructive Daylighting

Non-destructive digging to expose buried lines before any machine gets close.

Deep Utility Trenching (Water, Sewer & Storm)

Shored, bedded trenches for water, sanitary and storm service lines.

Emergency Utility Leak Dig-Outs

Priority dig-outs that expose broken water and sewer lines for the repair crew.

Concrete Slab & Asphalt Breakout

Driveway, slab, patio and parking lot tear-outs with clean saw-cut edges.

Infill Lot Digging & Tight-Access Excavation

Mini and midi excavator digs on narrow infill lots beside neighbouring homes.

Site Clean-Up & Material Haul-Off

Dirt, clay, rock and debris sorted, hauled off and the site left clean.

Every service we offer

Close to Downtown Calgary & Beltline

Southwest Calgary

Inner-city infills in Altadore and South Calgary out to the newer west-side communities.

Northwest Calgary

Bow River infills in Hillhurst and Sunnyside, Mount Pleasant, and the northwest suburbs.

Southeast Calgary

Inglewood and Ramsay infills, the largest industrial belt and newer deep-south suburbs.

Northeast Calgary

Bridgeland and Renfrew infills, warehouse districts and the northeast suburbs.

Excavation in Downtown Calgary & Beltline: Questions

Why use hydrovac instead of a small excavator on a downtown street?

Because of what is in the ground. Alberta's OHS Code sets a hand-expose zone of 1 m on each side of a locate mark, or 5 m for a high-pressure pipeline, and no mechanical digging is allowed inside it until the line is exposed by hand or by a non-destructive method the owner accepts. Under a downtown street those zones overlap, so hydrovac is often the only practical way to expose lines. Frozen ground does not remove the duty either: the ground must be thawed or dug non-destructively. Once lines are exposed, a compact machine can do the bulk digging.

Does an older Calgary house have a lead water service?

Probably not, but some might. The City says lead water service connections were used only for a short period, mainly between 1939 and 1947, and that most services, including in homes built before 1950, are copper. Galvanized steel services also exist, and the City explains how to tell the types apart. If a home dates from the war years and the service is being exposed for a repair or replacement, contact the City about the service material before the work is planned. We dig and expose the line; the connection work in the right-of-way belongs to a utility indemnified contractor.

Can you excavate downtown without closing the whole street?

Lane and sidewalk use is decided by the City through its permits, not by us. A hydrovac slot trench is far narrower than a machine-dug trench, a zero-tail-swing excavator stays inside its own footprint, and spoil is loaded straight into trucks rather than piled on the pavement. Trenches are backfilled and compacted as soon as the repair or installation is inspected, so the lane can be handed back.

Digging in Downtown Calgary & Beltline?

Call or send the details. Aspen Excavating works from downtown Calgary, and we will look at the site and the access before we price it.

(825) 475-5548 Send the Details
